€89,00€73,55
Excl. BTW
Incl. BTW
Available to Order
✔ Klantbeoordeling: 9,6 / 10
✔ Gratis verzending bij bestellingen boven €99
✔ Standaard EU-garantie inbegrepen
✔ Veilige betalingen met SSL-versleuteling
✔ Persoonlijke klantenservice
✔ Snelle & betrouwbare levering
✔ Meerdere betaalmethoden beschikbaar
✔ ISO 9001 gecertificeerd
✔ Klantbeoordeling: 9,6 / 10
✔ Gratis verzending bij bestellingen boven €99
✔ Standaard EU-garantie inbegrepen
✔ Veilige betalingen met SSL-versleuteling
✔ Persoonlijke klantenservice
✔ Snelle & betrouwbare levering
✔ Meerdere betaalmethoden beschikbaar
✔ ISO 9001 gecertificeerd
✔ Klantbeoordeling: 9,6 / 10
✔ Gratis verzending bij bestellingen boven €99
✔ Standaard EU-garantie inbegrepen
✔ Veilige betalingen met SSL-versleuteling
✔ Persoonlijke klantenservice
✔ Snelle & betrouwbare levering
✔ Meerdere betaalmethoden beschikbaar
✔ ISO 9001 gecertificeerd
€89,00€73,55
Excl. BTW
Incl. BTW
Available to Order
✔ Klantbeoordeling: 9,6 / 10
✔ Gratis verzending bij bestellingen boven €99
✔ Standaard EU-garantie inbegrepen
✔ Veilige betalingen met SSL-versleuteling
✔ Persoonlijke klantenservice
✔ Snelle & betrouwbare levering
✔ Meerdere betaalmethoden beschikbaar
✔ ISO 9001 gecertificeerd

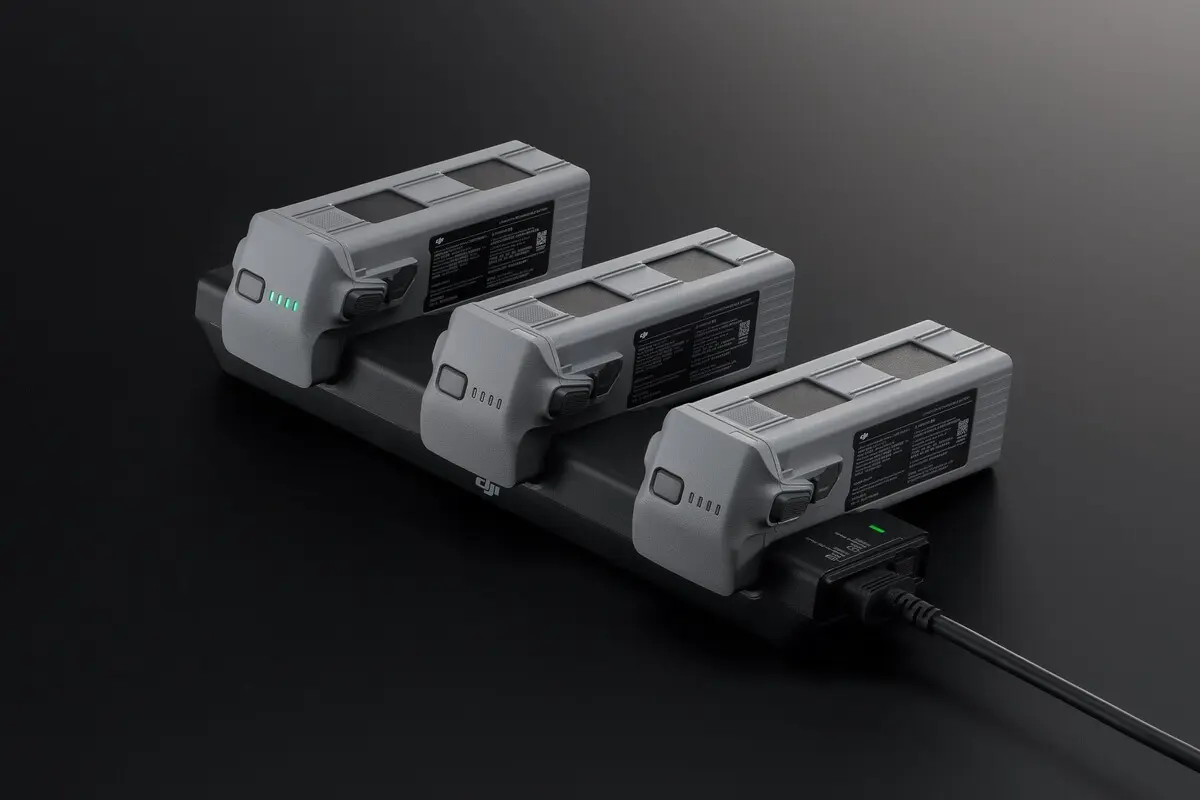

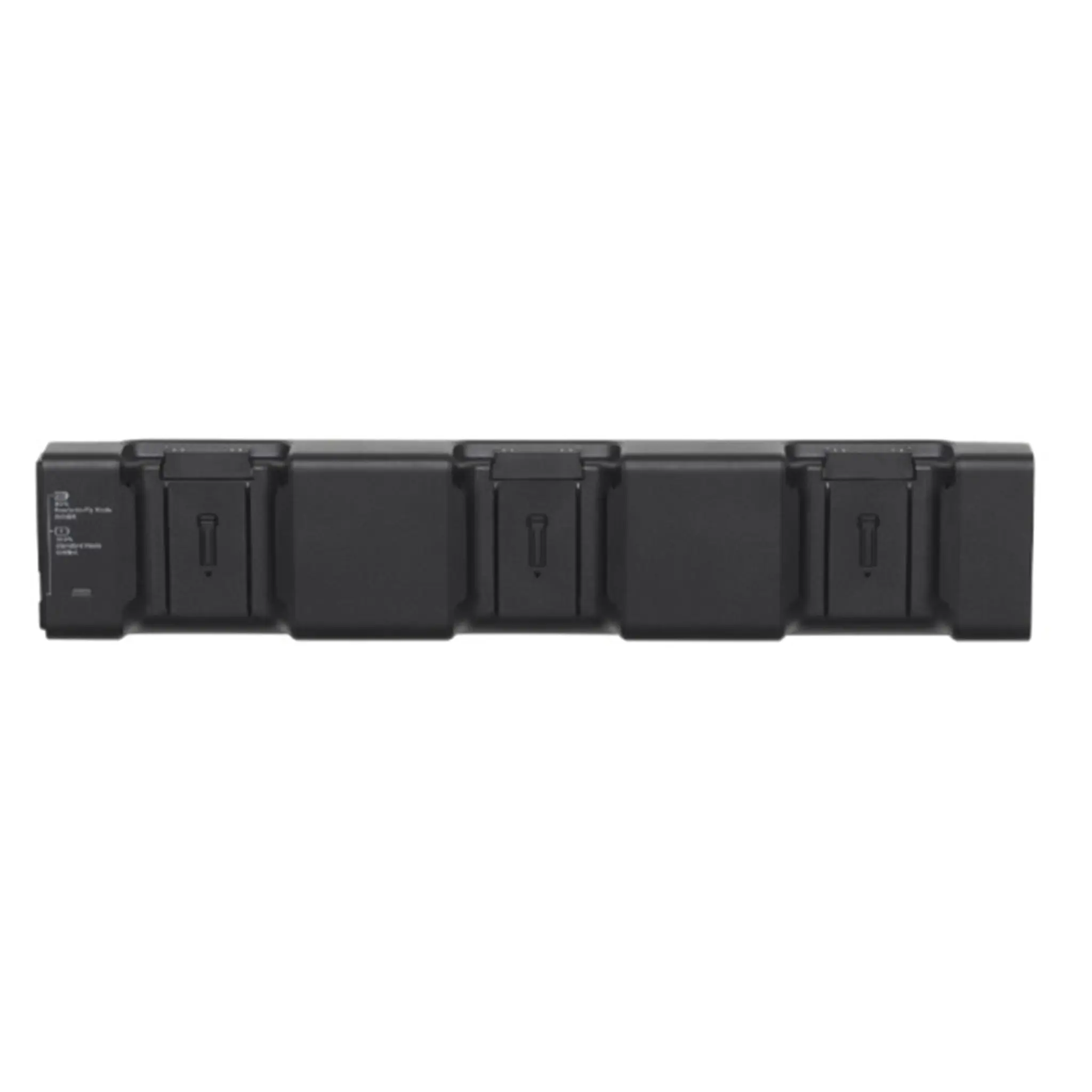

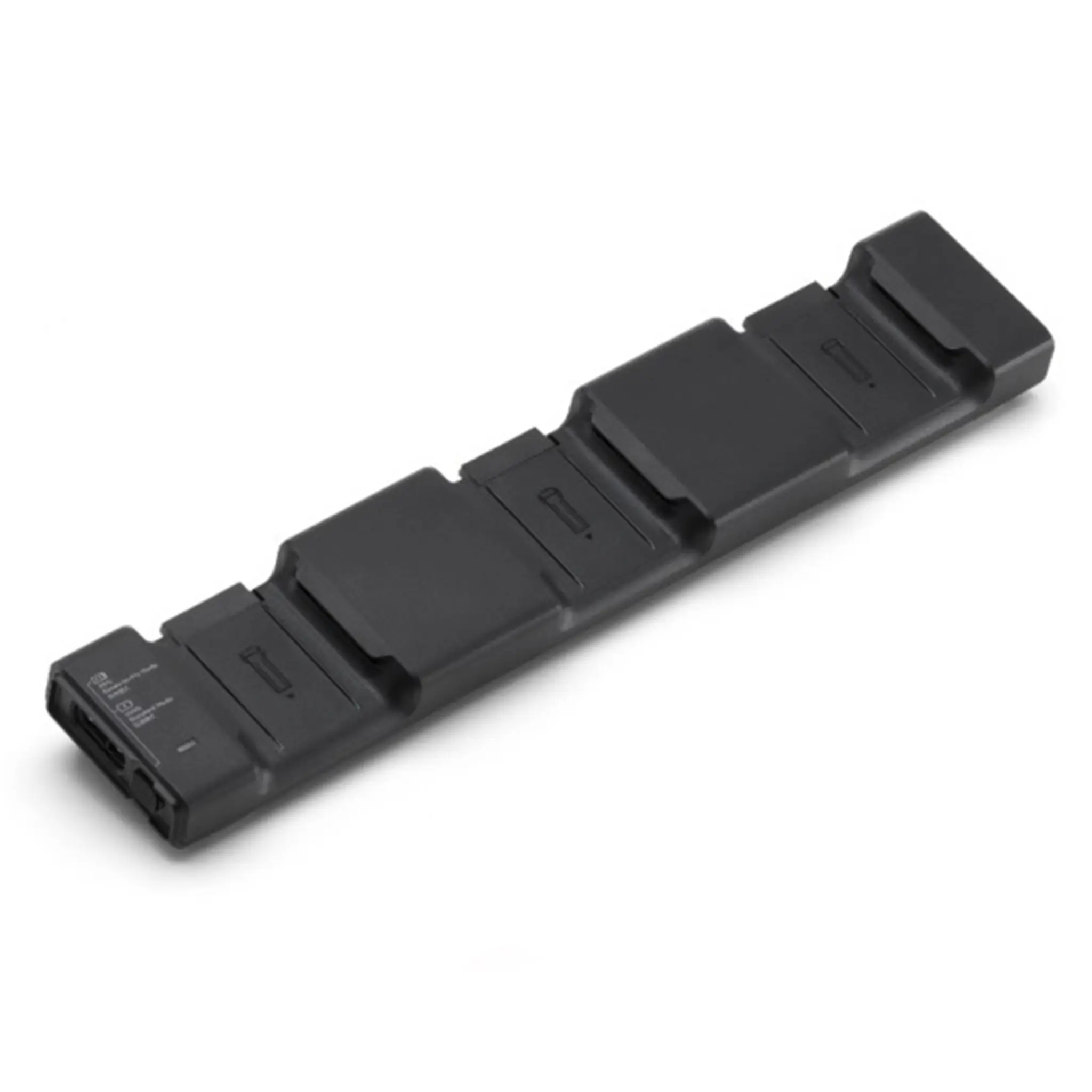

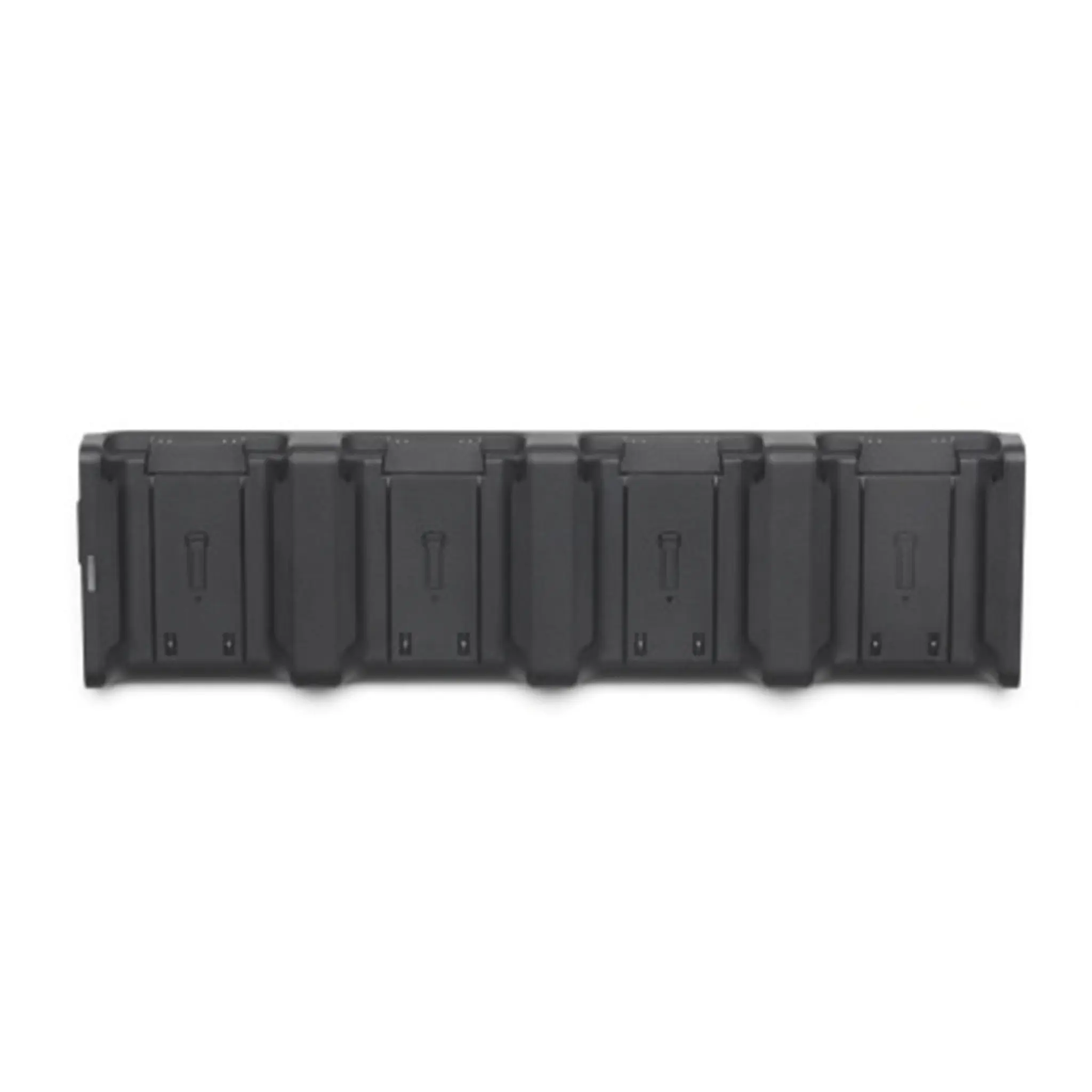

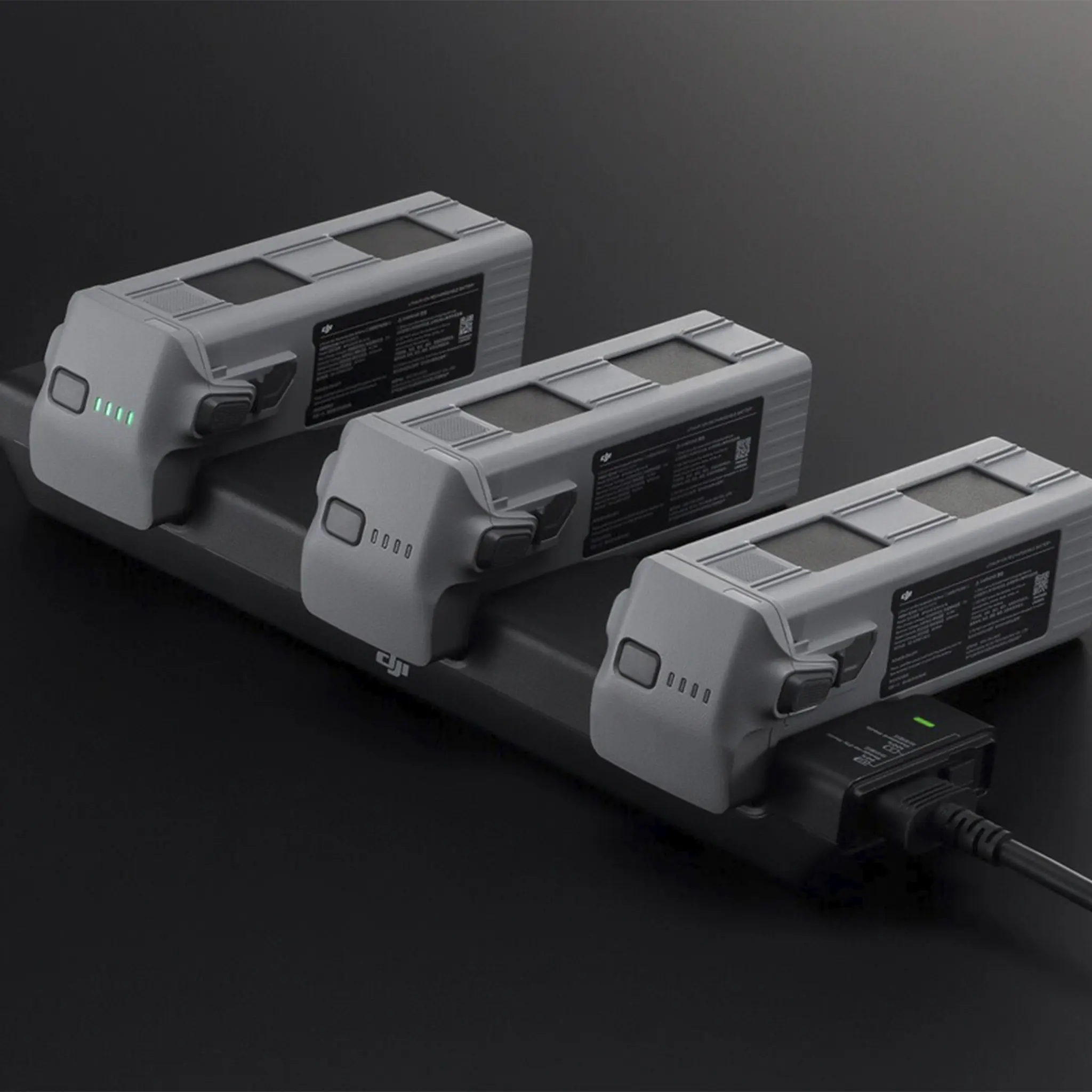

De DJI Matrice 4 Series Charging Hub (200W) is een professionele laadoplossing die speciaal is ontwikkeld voor de intelligente vluchtbatterijen van de DJI Matrice 4-serie. Deze compacte en efficiënte laadstation maakt het mogelijk om meerdere batterijen eenvoudig te beheren en op te laden, zodat drone-operators minder tijd kwijt zijn aan het wisselen van batterijen tijdens missies. Het systeem is ideaal voor professionele toepassingen zoals inspecties, mapping en openbare veiligheid, waar snelle inzetbaarheid essentieel is.
De hub kan tot drie Matrice 4 Intelligent Flight Batteries plaatsen en laadt ze automatisch sequentieel van het hoogste naar het laagste laadniveau. Hierdoor wordt de beschikbare energie optimaal verdeeld en blijven batterijen sneller beschikbaar voor de volgende vlucht.
Voor drone-professionals die afhankelijk zijn van continue vliegoperaties is de DJI Matrice 4 Series Charging Hub een essentieel accessoire. Door meerdere batterijen efficiënt te beheren en automatisch te laden, vermindert het stilstandtijd en verhoogt het de productiviteit tijdens missies. Het is de ideale oplossing voor operators die hun Matrice 4 drones snel weer in de lucht willen krijgen.
| Product | DJI Matrice 4 series Charging hub 200W |
| EAN | 6937224125643 |
| Model | CHX345-200 |
| Compatibel met | DJI 240W draagbare oplader (model: CDX230-240) |
| Compatibel met batterijmodel | BPX345-6741-14.76 |
| Bedrijfstemperatuur | 5 °C tot 40 °C (41 °F tot 104 °F) |
| Ingang | 11,2-17 V, max. 12,1 A |
| 1x oplaadhub |
| 1x SDC-snelladingskabel |
| DJI Matrice 4-serie |
DJI Matice 4 Series includes two versions – DJI Matrice 4T and DJI Matrice 4E.
DJI Matrice 4T is equipped with a 1/1.3-inch CMOS 48MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium telephoto camera, a 1/1.5-inch CMOS 48MP telephoto camera, a thermal imaging camera, a nir auxiliary light, and a laser rangefinding module. It features thermal imaging perception and powerful night capturing capabilities.
The DJI Matrice 4E is equipped with a 4/3-inch CMOS 20MP wide-angle camera, a 1/1.3-inch CMOS 48MP medium telephoto camera, a 1/1.5-inch CMOS 48MP telephoto camera, and a laser rangefinding module, providing powerful imaging capabilities.
DJI Matrice 4 Series is C2 certified by the European Union Aviation Safety Agency (EASA).
No. Avoid contact with water during use as it may lead to damage of the device. If it rains during the flight, return and land as soon as possible, and wait until the aircraft is fully dry inside and out before using it again.
When using DJI RC Plus 2 Enterprise Edition, for the first time, connect to the internet via Wi-Fi or a smartphone hotspot, and then follow the instructions on the remote controller to activate the device. After activating the DJI RC Plus 2 Enterprise Edition, use the DJI Pilot 2 app to connect the remote controller with the DJI Matrice 4 Series aircraft, and follow the prompts on the DJI Pilot 2 app interface to activate the aircraft.
You can connect to Network RTK via Wi-Fi on the remote controller.
Remote controller.
DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.
It will not damage the gimbal.
It is recommended to power on the aircraft after unfolding the arms to avoid collisions between the gimbal and the arms during the self-check.
No.
No.
The DJI Matrice 4 series supports two types of remote controllers: DJI RC Plus 2 Enterprise Edition and DJI RC Plus 2 Enterprise Enhanced Edition. Among them, the DJI RC Plus 2 Enterprise Edition is the standard remote controller for the DJI Matrice 4 Series, while the DJI RC Plus 2 Enterprise Enhanced Edition needs to be purchased separately.
The DJI RC Plus 2 Enterprise Enhanced Edition has added expansion interface components, making it compatible with more industry products.
Yes. To ensure charging speed, it is recommended to prioritize using the DJI Portable Charger (100W) and other chargers with a power output of over 100 watts that support the PD protocol.
Yes.
No.
The DJI Matrice 4 Series batteries can only be charged using the DJI Matrice 4 Series Charging Hub.
DJI Matrice 4 Series Charging Hub Supports two charging modes. By toggling the mode switch on the side of the Charging Hub, you can switch between charging modes.
Standard Mode: Each battery is charged to 100% in sequence.
Ready-to-Fly Mode: Charges each battery to 90% sequentially and maintains that level, enabling quick deployment.
Using the standard DJI Matrice 4 Series Charging Hub (100W) and DJI 100W Portable Charger:
In Standard Mode, it takes approximately 78 minutes to fully charge one DJI Matrice 4 Series battery.
In Ready-to-Fly Mode, it takes approximately 60 minutes to charge one DJI Matrice 4 Series battery to 90%.
Using the 200W Charging Hub and DJI 240W Portable Charger (model: CDX230-240):
In Standard Mode, it takes approximately 55 minutes to fully charge one DJI Matrice 4 Series battery.
In Ready-to-Fly Mode, it takes approximately 40 minutes to charge one battery to 90%.
The DJI Matrice 4 Series Charging Hub (200W) is not sold in certain countries or regions. Please contact your local dealer for more information.
Yes. To ensure charging speed, it is recommended to prioritize using the DJI Portable Charger (100W) and other chargers with a power output of over 100 watts that support the PD protocol.
It is recommended to connect to the C1 port.
DJI Matrice 4 Series batteries and DJI Matrice 4 Series Charging Hub (100W) support PD fast charging protocol.
No.
DJI Matrice 4 Series batteries can work at the operating environment from -10° to 40° C (14° to 104° F). The battery life will be shortened when used in low temperature environment. Please schedule the flight time properly.
No.
No. It is only compatible with the DJI 240W Portable Charger (model: CDX230-240) or DJI Power 1000 and must be used with the dedicated SDC cable included in the package. The USB-C port on the Charging Hub (200W) is for configuration and firmware updates only and cannot be used for charging.
The DJI Matrice 4 Series Charging Hub (200W) is not sold in certain countries or regions. Please contact your local dealer for more information.
The DJI AS1 Speaker supports recording, media import, and text-to-speech functions*. It also features real-time broadcasting and echo cancellation**, making emergency search and rescue operations more efficient and flexible.
The spotlight and speaker can be used independently or in combination，meeting the needs of more operational scenarios.
* The current text-to-speech function only supports Mandarin Chinese and English.
** Please upgrade the firmware to the latest version.
Support for use with DJI Matrice 4 Series aircraft.
1. Tighten the screws to ensure secure installation.
2. When using the speaker and spotlight together, please remove the speaker adapter bracket.
3. After installation, please upgrade all devices to the latest firmware and activate the speaker and calibrate the aircraft compass according to the App prompts.
Please pay attention to the following when using the speaker:
1. After installing the speaker, the aircraft’s power performance will be affected. Please pay attention to flight safety.
2. Use the standard remote controller to play human voices for optimal playback effect. It is not recommended to play single-frequency sounds to avoid irreversible damage to the speaker.
3. DO NOT use the speaker near people or in an urban area where noise-sensitive structures are concentrated, as the loudness could lead to accidents or injuries.
Currently only supports Mandarin Chinese and English.
Please speak close to the top of the remote controller microphone and maintain a steady pace.
It supports shortcuts to start/stop real-time broadcasting, which can be set in the custom buttons of the App remote controller for quick operation during tasks.
Install the speaker on the aircraft. When the aircraft firmware is upgraded, the speaker will be upgraded simultaneously.There are three ways to upgrade the firmware:
1. Connect the aircraft to the computer and use the DA2 software to adjust parameters and upgrade.
2. Click on the firmware upgrade in the main interface of the App to upgrade directly.
3. When the system prompts for a consistency upgrade, click upgrade.
1. DJI AL1 SpotLight supports always-on and strobe modes; support enabling and disabling follow gimbal orientation mode.
2. The spotlight and speaker can be used independently or in combination，meeting the needs of more operational scenarios.
3. Added wide fov lighting mode, which can illuminate a wider area.*
* Please upgrade the firmware to the latest version.
Support for use with DJI Matrice 4 Series aircraft.
1. It is recommended to enable the electronic defogging function when using the spotlight in wide-angle or 1X mode on the aircraft to achieve better image quality.
2. It is recommended to appropriately reduce the brightness of the spotlight and turn it on as needed to minimize the impact on the drone’s flight time.
1. When installing the spotlight, please tighten the screws to ensure a secure installation.
2. After installing the spotlight, please activate the spotlight according to the App prompts and upgrade all devices to the latest firmware.
When using the speaker and spotlight together, please remove the adapter bracket at the bottom of the speaker, install the speaker onto the top interface of the spotlight, and tighten the screws.
Please pay attention to the following when using the spotlight:
1. After installing the spotlight, the obstacle avoidance and power performance of the aircraft will be affected. When the spotlight is turned on, the obstacle avoidance function will deactivate automatically. Please pay attention to flight safety.
2. DO NOT point the spotlight directly at people’s eyes to avoid causing eye damage.
3. The spotlight may become hot after prolonged operation. Please be careful to avoid burns.
In the app’s spotlight settings, turn on the wide fov mode to increase the illumination range and field of view.This feature is linked to the camera zoom ratio and is only effective with the wide-angle camera and 1X zoom.
Install the spotlight on the aircraft. When the aircraft firmware is upgraded, the spotlight will be upgraded simultaneously.There are three ways to upgrade the firmware:
1. Connect the aircraft to the computer and use the DA2 software to adjust parameters and upgrade.
2. Click on the firmware upgrade in the main interface of the App to upgrade directly.
3. When the system prompts for a consistency upgrade, click upgrade.
It supports shortcuts to turn on/off/ strobe. These can be set in the App remote controller’s custom buttons for quick operation during tasks.
In the spotlight settings, you can choose to disable the follow gimbal orientation mode. Please note that once disabled, the spotlight will maintain its current angle; when re-enabled, the spotlight will automatically adjust to align with the gimbal’s orientation.
Yes.
In the speaker settings, you can choose between a male or female voice and adjust the speed and pitch.
1. The product may be damaged or malfunction due to external impacts. Please handle with care during use and avoid dropping it.
2. The aircraft can be directly stored in the protector case with the spotlight installed.
No.
Install the speaker on the aircraft. When the aircraft firmware is upgraded, the speaker will be upgraded simultaneously. You can update the firmware in the following ways:
1. Connect the aircraft to the computer to upgrade the firmware of the aircraft and remote controller through DJI Assistant 2 (Enterprise Series).
2. Use DJI Pilot 2 to update the firmware of the aircraft, remote controller.
3. Visit the official DJI website to download the offline firmware update package for the aircraft and remote controller. Then, insert the SD card storing the firmware package into the remote controller for offline update.
DJI Pilot 2 app and other software developed by using MSDK.
Yes.
The DJI Matrice 4T supports smart oblique capture in the oblique collection function of the area route.
The DJI Matrice 4 series aircraft features 5-direction smart oblique capture, which allows data collection to be completed with just one route. In contrast, the DJI Mavic 3E features 3-direction smart oblique capture, requiring two routes to complete data collection.
Both the DJI Matrice 4 series and the Zenmuse P1 feature 5-direction smart oblique capture. However, the DJI Matrice 4 series smart oblique capture is in an “X” shape, while the Zenmuse P1 smart oblique capture is in a “+” shape.
Yes.
DJI Matrice 4 series can control both payloads and aircraft simultaneously and supports live flight controls through FlightHub 2.
DJI Matrice 4E supports precise mapping after enabling RTK function.
Equipping DJI Matrice 4T with the RTK module can’t guarantee the final precision.
DJI Matrice 4 Series supports Payload SDK, Mobile SDK, and Cloud API.
For technical support, please contact dev@dji.com.
Visit the DJI Developer Platform for more information or contact dev@dji.com for technical assistance.
No. Please confirm the applicable countries and regions with your dealer before purchasing.
No.
| Product | DJI Matrice 4 series Charging hub 200W |
| EAN | 6937224125643 |
| Model | CHX345-200 |
| Compatibel met | DJI 240W draagbare oplader (model: CDX230-240) |
| Compatibel met batterijmodel | BPX345-6741-14.76 |
| Bedrijfstemperatuur | 5 °C tot 40 °C (41 °F tot 104 °F) |
| Ingang | 11,2-17 V, max. 12,1 A |
| 1x oplaadhub |
| 1x SDC-snelladingskabel |
De DJI Matrice 4 Series Charging Hub (200W) is een professionele laadoplossing die speciaal is ontwikkeld voor de intelligente vluchtbatterijen van de DJI Matrice 4-serie. Deze compacte en efficiënte laadstation maakt het mogelijk om meerdere batterijen eenvoudig te beheren en op te laden, zodat drone-operators minder tijd kwijt zijn aan het wisselen van batterijen tijdens missies. Het systeem is ideaal voor professionele toepassingen zoals inspecties, mapping en openbare veiligheid, waar snelle inzetbaarheid essentieel is.
De hub kan tot drie Matrice 4 Intelligent Flight Batteries plaatsen en laadt ze automatisch sequentieel van het hoogste naar het laagste laadniveau. Hierdoor wordt de beschikbare energie optimaal verdeeld en blijven batterijen sneller beschikbaar voor de volgende vlucht.
Voor drone-professionals die afhankelijk zijn van continue vliegoperaties is de DJI Matrice 4 Series Charging Hub een essentieel accessoire. Door meerdere batterijen efficiënt te beheren en automatisch te laden, vermindert het stilstandtijd en verhoogt het de productiviteit tijdens missies. Het is de ideale oplossing voor operators die hun Matrice 4 drones snel weer in de lucht willen krijgen.
| DJI Matrice 4-serie |
